Model

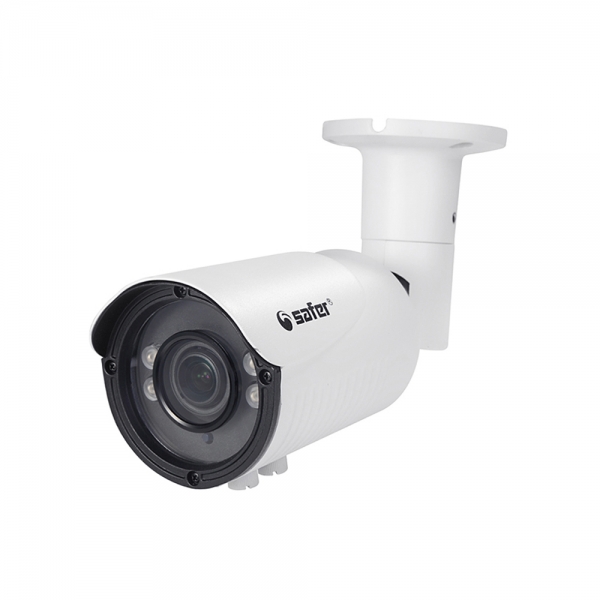

SF-SN324JZ-4-ICR-L1

Camera

Sensor

1/2.8" 2.0MP Progressive Scan CMOS

Min. Illumination

0.001Lux @(F1.2,AGC ON),0Lux with IR ON

Shutter

Auto /Manual, 1/25~1/100000

Lens Type

2.8-12MM

IR LEDS

4pcs Array LEDs, IR distance 40 meters

Video Compression

H.264/H.265

Bit Rate

128Kbps~8Mbps

Max .Resolution

Main Stream: 1920×1080(25/30fps), Sub Stream: 720×576(25/30fps)

WDR

Super WDR

Day&Night

Auto/Black&White/Color

Noise Reduction

Auto/manual

Exposure Mode

Auto/manual

Flip

Horizontal/Vertical

Audio Compression

G.711

Network

Protocols

TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP, RTCP,PPPOE,NTP,SMTP

Interface Protocols

ONVIF /Private CGI

Cloud

P2P

Network

RJ45 ( 10M/100M Ethernet)

General

Audio input/output

Optional

Alarm input/output

Optional

Micro SD Slot

/

Waterproof

IP66

Working Temperature

-10℃~50℃

Working Humidity

10%~90%

Power Consumption

610 mA

Power Supply

DC12V±10%  Buil-in POE Optional
