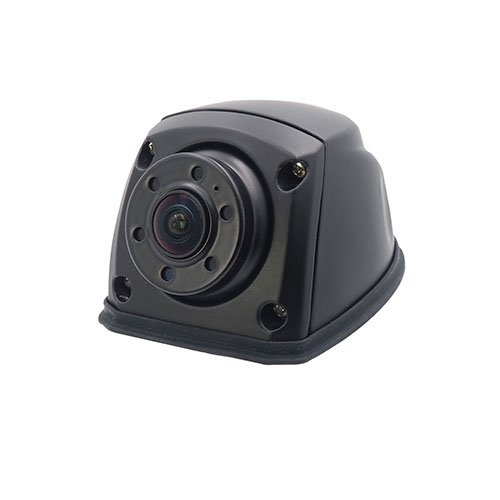

Professional Video Surveillance Provider
1920X1080HD Resolution， 6pcs Enhanced LED Light
High-performance 2MP CMOS image sensor
Designed specifically for car cameras, it has excellent picture quality, weather resistance, shock resistance, and excellent performance。
Support AHD/TVI and CVBS
As a BSD Camera Widely Used in Various Commercial Vehicles
Support IR CUT，Day&Night Mode, Support Super Wide Angle
|
Model |
Model |
SF-FHD325G-G3 |
|
Type |
2MP Astern Camera |
|
|
Camera Specifications |
Sensor Type |
1/2.9" Low illuminance Color CMOS |
|
DSP Model |
FH8536H |
|
|
Signal System |
AHD/TVI/CVI/CVBS |
|
|
Effective Pixels |
1920H x 1080V |
|
|
Minimum Illumination |
0.01Lux(F1.2,AGC ON),0 Lux with IR ON |
|
|
Shutter |
Auto; 1 / 25s ~ 1 / 100000s ( PAL ) 1 / 30s ~ 1 / 100000s ( NTSC ) |
|
|
Lens |
1.4mm，2.2mm，2.8mm |
|
|
Lens Type |
M12 |
|
|
Day/Night Mode |
Support ICR switch, true day/night |
|
|
Frame Rate |
30FPS(60Hz)，25FPS(50Hz) |
|
|
Video Output Mode |
AHD/TVI 2MP |
|
|
SNR |
≥60DB |
|
|
Menu Control |
White Balance |
ATW |
|
Color/B&W |
Support ICR switch, true day/night |
|
|
Noise Reduction |
2D/3D |
|
|
Exposure Mode |
auto |
|
|
Voice |
None |
|
|
Language |
Chinese / English |
|
|
Other Functions |
SMART IR、Any angle |
|
|
Common Parameters |
Power |
DC12V±10% |
|
IR Light Distance |
10 M |
|
|
Power Consumption |
≤3W |
|
|
Waterproof Level |
IP69k |
|
|
Communication Protocol |
HD_AHD/HD_TVI/HD_CVI/CVBS |
|
|
Operating Temperature and Humidity |
-30℃ ~ 70℃，10% ~ 90% Humidity |
