Professional Video Surveillance Provider
Specially designed for ADAS AI applications

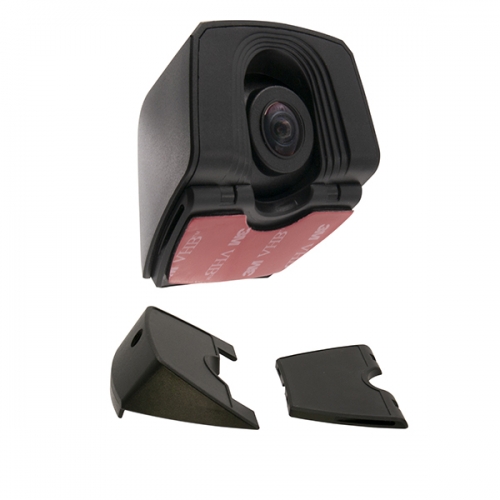

Two angles of gaskets are available, suitable for various vehicle front windshields.
1920*1080 SONY movement
Professional advanced graphics processing chip
Image edges are clearer and intelligent recognition is more accurate
Plastic Case
|
Model |
Model |
SF- SDI628E-S8 |
|
Camera Specifications |
Sensor Type |
1/2.8" Low illuminance SONY CMOS |
|
DSP Model |
EN771 |
|
|
Effective Pixels |
1920H x 1080V |
|
|
Minimum Illumination |
0.01Lux(F1.2,AGC ON),0 Lux with IR ON |
|
|
Shutter |
Auto; 1 / 25s ~ 1 / 100000s ( PAL ) 1 / 30s ~ 1 / 100000s ( NTSC ) |
|
|
Lens |
3.6mm,6mm,12mm |
|
|
Lens Type |
M12 |
|
|
Frame Rate |
30FPS(60Hz)，25FPS(50Hz) |
|
|
Video Output Mode |
AHD/2MP |
|
|
SNR |
≥60DB |
|
|
Menu Control |
Color/B&W |
COLOR |
|
Noise Reduction |
2D/3D |
|
|
Exposure Mode |
auto |
|
|
Audio |
None |
|
|
Language |
Chinese / English |
|
|
Other Functions |
SMART IR、Any angle |
|
|
Common Parameters |
Power |
DC12V±10% |
|
Power Consumption |
≤3W |
|
|
Communication Protocol |
AHD |
|
|
Operating Temperature and Humidity |
-30℃ ~ 70℃，10% ~ 90% Humidity |
