ACCESSORIES

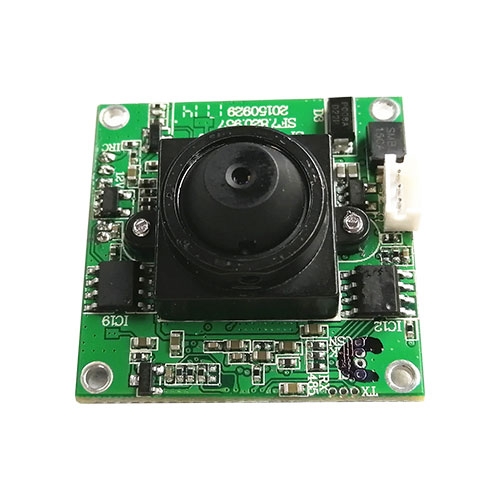

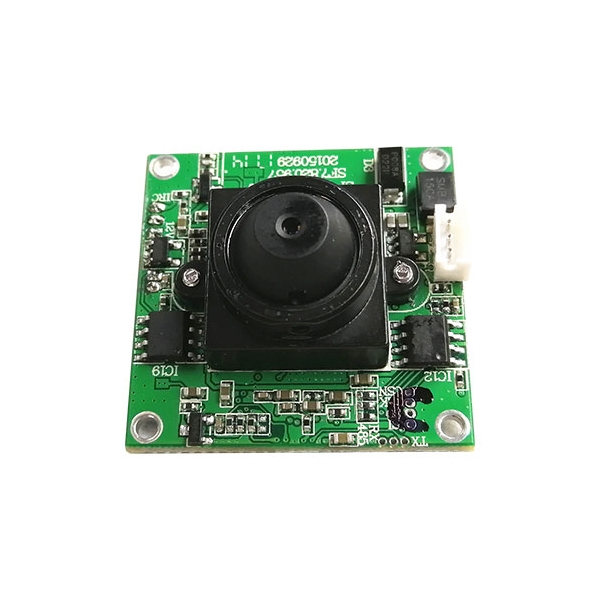

AHD 1.3M Video Moduleule

SF-AHD225-32 AHD 1.3M 2.8MM
Lens : Pinhole Mega M12/2.8MM
Size :  32*32 MM
Net Weight : 0.02 KG
Package : 1000pcs/ctn  425*345*275MM
  • * 1/3" Sony Exmor CMOS IMX225 Super Low Lux
    * 1.3M/960P Resolution
    * Mega Pinhole M12/2.8MM Lens
    * HD AHD output
    * Support 3DNR
  • Model

    SF-AHD225-32  AHD 1.3M 2.8MM

    Camera

    Image Device

    1/3" Sony Exmor CMOS IMX225 Super Low Lux

    Horizontal Resolution

    1.3M/960P

    Effective Pixels

    1280Hx960V

    DSP

    NVP2431

    Minimum Illumination

    0.0005LUX/F1.2

    Lens

    Mega Pinhole M12/2.8MM

    S/N Ratio

    48dB

    Day&Night

    COLOR-B&W

    Electronic Shutter

    1/50(1/60) - 1/100000 Sec.

    Synchronization

    Internal

    Video Output

    1CH HD_AHD

    Working Temperature

    -10~50

    Working Humidity

    10%~90%

    Power Consumption

    90 mA

    Power Supply

    DC12V±5%

  • Please submit your basic information and we will reply you as soon as possible!

    *

    *

    *

    *
