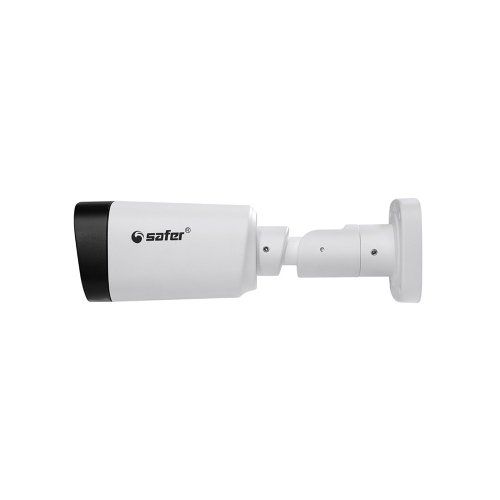

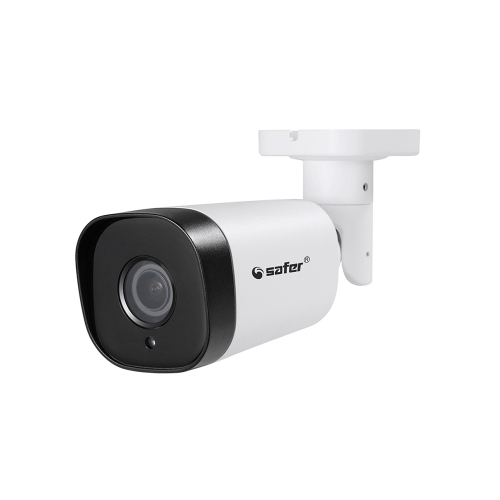

Model |
SF-AHD357EZ-6-ICR-M3 |
|
Camera |
Image Device |
1/2.7" 5.0MP CMOS |
Horizontal Resolution |
5.0M |
|
Effective Pixels |
2592H x 1944V |
|
Electronic Shutter |
1/25s~1/50,000s |
|
Image System |
PAL/ NTSC |
|
Synchronization |
Internal |
|
Mini. Illumination |
0.01Lux(F1.2,AGC ON),0 Lux with IR ON |
|
Max. IR LEDs Length |
6pcs Array Leds , 60M , Smart IR |
|
Day/Night |
IR Cut Filter Auto Switch |
|
Lens Type |
M14 HD Vari Focus 2.8-12mm |
|
Video Output |
1CH HD_AHD/960H output |
|
OSD |
OSD Menu |
UTC , External OSD Joystick (Optional ) |
Noise Reduction |
3D_DNR |
|
BLC |
Auto |
|
WDR |
D_WDR |
|
General |
Transmission Distance |
Over 500m via 75-3 coaxial cable |
Waterproof |
IP66 |
|
Working Temperature |
-10℃~50℃ |
|
Working Humidity |
10%~90% |
|
Power Consumption |
750 mA |
|
Power Supply |
DC12V±10% |
