4.0M

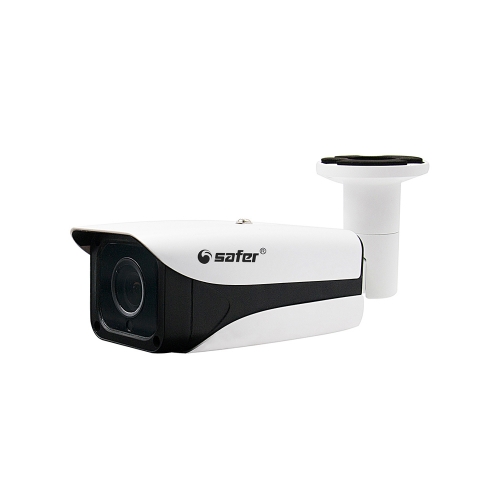

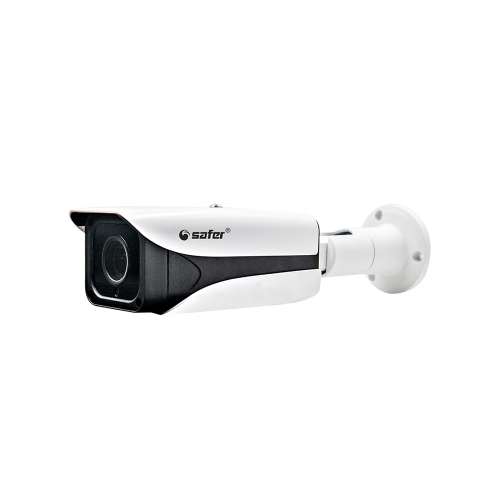

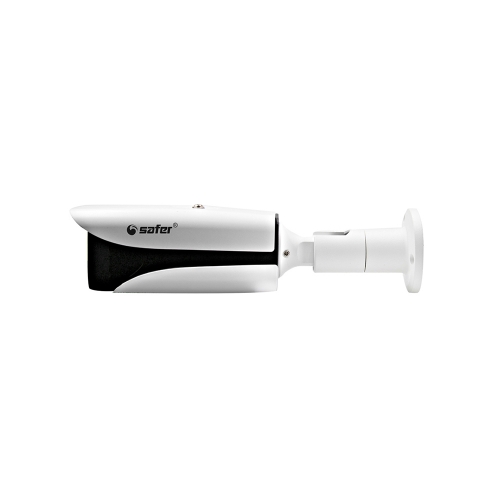

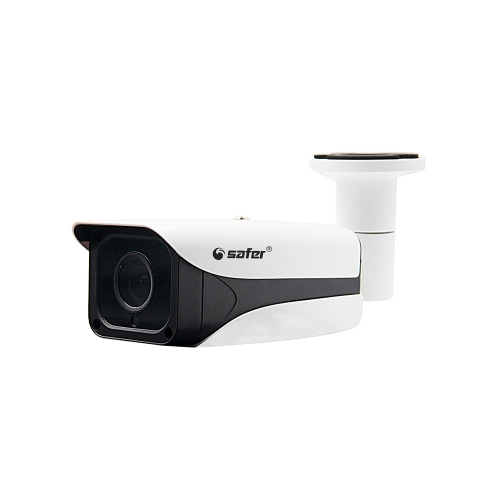

HYBRID ANALOG 4.0M IR Bullet Camera_2

SF-FHD347IZ-4-ICR-V4
Lens : Vari Focus 2.8-12 MM
Color : White
Size :  Ø88 * L:312 MM
Net Weight : 0.55 KG
Package : 12pcs/ctn  528*350*470MM
  • * Adopt 1/3‘‘ 4.0 Megapixels CMOS Sensor
    * 2688H x 1520V High Definition Image
    * Control OSD Menu via Coaxial Cable
    * Over 500 Meters Coaxial Cable Transmission
    * Hybrid AHD/TVI Signal output
    * Support 2DNR
    * Support Smart IR Function
  • Model

    SF-FHD347IZ-4-ICR-V4

    Camera

    Image Device

    1/3" 4.0MP CMOS

    Horizontal Resolution

    4.0M

    Effective Pixels

    2688H x 1520V

    Electronic Shutter

    1/25s~1/50,000s

    Image System

    PAL/ NTSC

    Synchronization

    Internal

    Mini. Illumination

    0.05Lux(F1.2,AGC ON),0 Lux with IR ON

    Max. IR LEDs Length

    4pcs Array Leds , 40M , Smart IR

    Day/Night

    IR Cut Filter Auto Switch

    Lens Type

    M14 HD Vari Focus 2.8-12mm

    Video Output

    1CH HD_AHD/TVI output

    OSD

    OSD Menu

    UTC , External OSD Joystick (Optional )

    Noise Reduction

    2D_DNR

    BLC

    Auto

    WDR

    D_WDR

    General

    Transmission Distance

    Over 500m via 75-3 coaxial cable

    Waterproof

    IP66

    Working Temperature

    -10~50

    Working Humidity

    10%~90%

    Power Consumption

    450 mA

    Power Supply

    DC12V±10%

  • SF-FHD347IZ-4-ICR-V4 DIM.PDF
