1080P

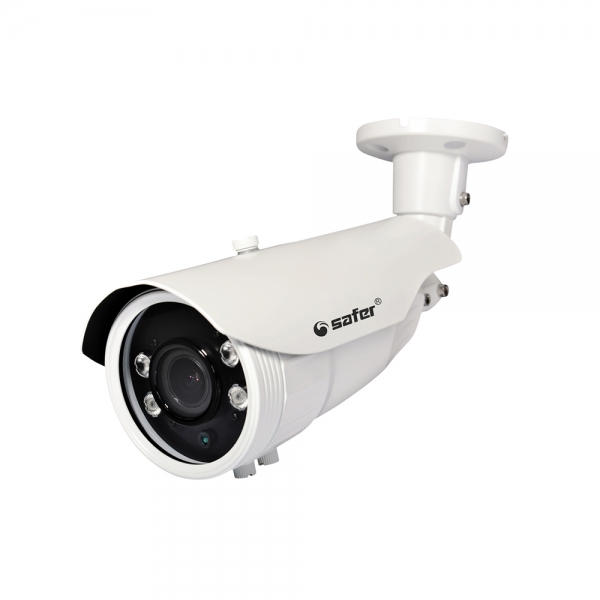

HYBRID ANALOG 1080P IR Bullet Camera_4

SF-FHD326PZ-4-ICR-S6
Lens : Vari Focus 2.8-12 MM (6-22MM Optional)
Color : White / Grey
Size :  Ø80 * L:260 MM
Net Weight : 0.7 KG
Package : 12pcs/ctn  528*350*470MM
  • * Adopt 1/2.8‘‘ 2.0 Megapixels CMOS Sensor
    * 1920×1080 High Definition Image
    * Control OSD Menu via Coaxial Cable
    * Over 500 Meters Coaxial Cable Transmission
    * Hybrid AHD/TVI/CVI/CVBS Signal output
    * Support 2DNR
    * Support Smart IR Function
  • Model

    SF-FHD326PZ-4-ICR-S6

    Camera

    Image Device

    1/2.8" 2.0MP Sony CMOS

    Horizontal Resolution

    2.0M/1080P

    Effective Pixels

    1920(H)×1080(V)

    Electronic Shutter

    1/25s~1/50,000s

    Image System

    PAL/ NTSC

    Synchronization

    Internal

    Mini. Illumination

    0.01Lux(F1.2,AGC ON),0 Lux with IR ON

    Max. IR LEDs Length

    4pcs Array Leds , 45M , Smart IR

    Day/Night

    IR Cut Filter Auto Switch

    Lens Type

    M14 HD Vari Focus 2.8-12mm(6-22MM Optional)

    Video Output

    1CH HD_AHD/TVI/CVI/960H output

    OSD

    OSD Menu

    UTC , External OSD Joystick (Optional )

    Noise Reduction

    2D_DNR

    BLC

    Auto

    WDR

    D_WDR

    General

    Transmission Distance

    Over 500m via 75-3 coaxial cable

    Waterproof

    IP67

    Working Temperature

    -10~50

    Working Humidity

    10%~90%

    Power Consumption

    450 mA

    Power Supply

    DC12V±10%

  • SF-FHD326PZ-4-ICR-S6 _DIM.PDF
